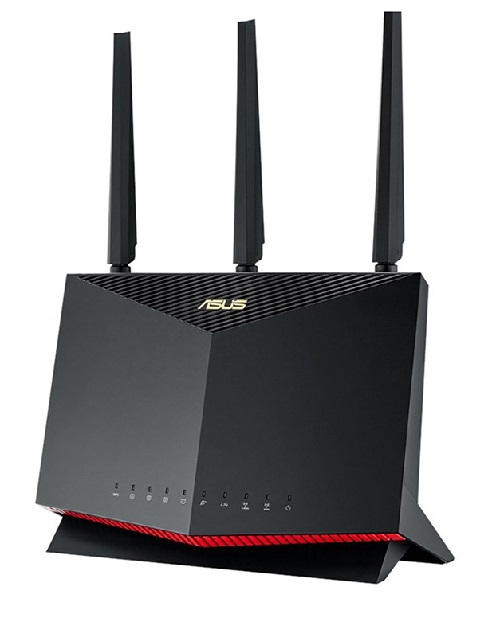

ASUS RT-AX86U AX5700 Dual Band WiFi 6 (802.11ax) Gaming Router

ASUS RT-AX86U AX5700 Dual Band WiFi 6 (802.11ax) Gaming Router, Mobile Game Mode, 2.5G Port, Mesh WiFi Support, Port Forwarding

• AX5700 Dual Band WiFi 6 Gaming Router, PS5 compatible, Mobile Game Mode, Lifetime Free Internet Security, Mesh WiFi support, 2.5G Port, Gaming Port, Adaptive QoS, Port
• New-generation WiFi 6 - Enjoy ultrafast speeds up to 5700 Mbps with WiFi 6 (802.11ax) compatible and 160MHz channels
• Mobile Game Mode - Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app
• True 2 Gbps wired and wireless speeds - Aggregated 2 Gbps WAN connections, wired 2.5 Gbps port and WiFi 6
• ASUS AiMesh support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
• Commercial-grade home network security – Lifetime free ASUS AiProtection Pro, powered by Trend Microâ„¢, with WPA3 and advanced Parental Controls to protect your home

Model Name

• RT-AX86U

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6

Product Segment

• AX5700 ultimate AX performance: 861+4804Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• 802.11n : up to 450 Mbps
• 802.11n (1024QAM) : up to 750 Mbps
• 802.11ac (1024QAM) : up to 4333 Mbps
• 802.11ax (2.4GHz) : up to 861 Mbps
• 802.11ax (5GHz) : up to 4804 Mbps

Antenna

• External antenna x 3
• Internal PCB antenna x 1

Transmit/Receive

• 2.4 GHz 3 x 3
• 5 GHz 4 x 4

Processor

• 1.8 GHz quad-core processor

Memory

• 256 MB Flash
• 1 GB DDRIII RAM

Operating Frequency

• 2.4 GHz / 5 GHz

Ports

• RJ45 for 10/100/1000 BaseT for WAN x 1
• RJ45 for 10/100/1000 BaseT for LAN x 4
• RJ45 for 2.5G BaseT for WAN/LAN x 1
• USB 3.2 Gen 1 x 2

Button

• WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 2.5G Port x 1
• WAN x 1
• LAN x 4
• WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 2.37 A current / 1
